TruTrak GPS LED Lighting Guide
Not sure what the lights on your GPS tracker mean? This guide explains the LED lighting sequences on TruTrak GPS devices. Each light pattern indicates the status of key functions such as power, GPS lock and network connectivity. Use the previews below to quickly diagnose what your device is doing.
GAT23 GPS Tracking Device
GPS LED Signal
If you notice a flashing blue LED on your GPS tracking device, it means the unit is currently searching for a GPS signal. This is a normal part of the startup process, as the device attempts to connect with satellites to determine its precise location.
GPS LED Signal
A solid blue LED indicates that your GPS device has successfully acquired a GPS signal. This means the device is now ready to report accurate location data and is actively transmitting its position.
Power LED Signal
A solid green LED means your GPS device is fully charged and ready for use. However, once the device is moved, the LED will likely turn red again as it begins the charging cycle or requires re-connection.
Power LED Signal
A solid red LED indicates that your GPS device is currently charging. Once fully charged, the LED will change to green.
FMT100 GPS Tracking Device & Other Teltonika Devices
GPS/GPSR LED Signal
Two flashing LEDs indicate that your GPS device is actively establishing a connection with both GPS satellites and the network. This means the device is in the process of syncing location data and preparing for full functionality.
GPS/GPSR LED Signal
If you see one flashing LED and one solid LED, it means the device is unable to establish a GPS connection. To fix this, move the device to an area with a clearer view of the sky so it can acquire a signal and start tracking its position.
GL320MG GPS Tracking Device
GPS LED Signal
A fast flashing blue LED indicates that the device is actively searching for a GPS signal. This process is essential for establishing a connection with satellites and determining the device's location.
GPS LED Signal
A slower flashing LED means the device has successfully connected to GPS, but the GPS data is inaccurate or incorrect. This could happen due to interference or poor satellite signals and the device will need to recalibrate to provide accurate location information.
GPS LED Signal
A solid blue LED indicates that the device has successfully acquired a GPS signal and is now ready to track and report accurate location data.
Network LED Signal
A fast flashing green LED means the device is actively searching for a network connection. This is part of the process to sync with the network and ensure proper data transmission.
Network LED Signal
A slower flashing green LED indicates that the device has successfully connected to the network and is in the process of establishing communication for data transmission.
Network LED Signal
A solid green LED indicates that the SIM card in the device is locked, meaning it has successfully connected to the network and is ready for data transmission.
Power LED Signal
A fast flashing red LED indicates that the device is currently charging. Once charging is complete, the LED will typically change to a solid color to show that the battery is full.
Power LED Signal
A slow flashing red LED means that the device is running low on power and needs to be charged soon to ensure continued operation.
Power LED Signal
A solid red LED means the device has finished charging and is now fully charged and ready for use.
GV57 GPS Tracking Device
Network LED Signal
A fast flashing green LED indicates that the device is searching for a mobile network connection. This is necessary for sending location data once a GPS signal is acquired.
Network LED Signal
A slow flashing green LED indicates that the device has successfully connected to the mobile network and is ready to transmit data.
Network LED Signal
A solid green LED indicates that there is an issue with the device’s SIM card. To resolve this, please contact customer support for assistance.
GPS LED Signal
A fast flashing red LED indicates that the device is searching for a satellite (GPS) connection. This is part of the startup process before accurate location tracking can begin.
GPS LED Signal
A slow flashing red LED indicates that the device has encountered a data error. This may affect location reporting or communication, and troubleshooting or support may be required. Please contact our office.
GPS LED Signal
A solid red LED indicates that the device has successfully acquired a GPS signal and is ready to begin tracking.
GL50B GPS Tracking Device
When the GPS device is first turned on, the red LED will flash as it begins searching for a mobile network. If the device successfully connects, the red LED will turn solid for 30 seconds and then switch off, indicating a stable network connection. However, if the red LED continues flashing for 5 minutes and then turns off, this means the device was unable to find a network. In this case, turn the device off for at least one full minute, move to an open outdoor area with good signal visibility, and then turn the device back on to allow it to reconnect.
FMB920 GPS Tracking Device
GPS/GPSR LED Signal
When you see two flashing green LEDs, it means the device is searching for both GPS (satellite signal) and GPRS (network connection). The device is in the process of establishing both connections to function properly.
GPS/GPSR LED Signal
When both green LEDs are solid, it means the device has successfully connected to both GPS (satellite signal) and GPRS (network connection), allowing it to track and transmit location data.
FMT200 GPS Tracking Device
GPS/GPSR LED Signal
When either LED is flashing, the blue LED means the device is searching for a GPS signal, while the red LED indicates the device is searching for a network connection. Both LEDs flash while the device is attempting to establish a connection for accurate location tracking and data transmission.
GPS/GPSR LED Signal
When either LED is solid, the blue LED means the device has successfully acquired a GPS signal, while the red LED indicates that the device has successfully connected to a network. Both LEDs show that the device is now ready to track and transmit location data.
GAT24 GPS Tracking Device
Power LED Signal
The green LEDs will flash when the device is charging, with the flashing pattern indicating the number of charge grids. Once the device is fully charged, the green LEDs will stay solid to show that charging is complete.
The GAT24 device defaults with all lights off. To display the status lights, simply short press the power button and the lights will appear for 3 minutes. While the lights are on, the device operates in high power consumption mode. The device will only enter low power consumption mode when the lights are turned off.
GPS LED Signal

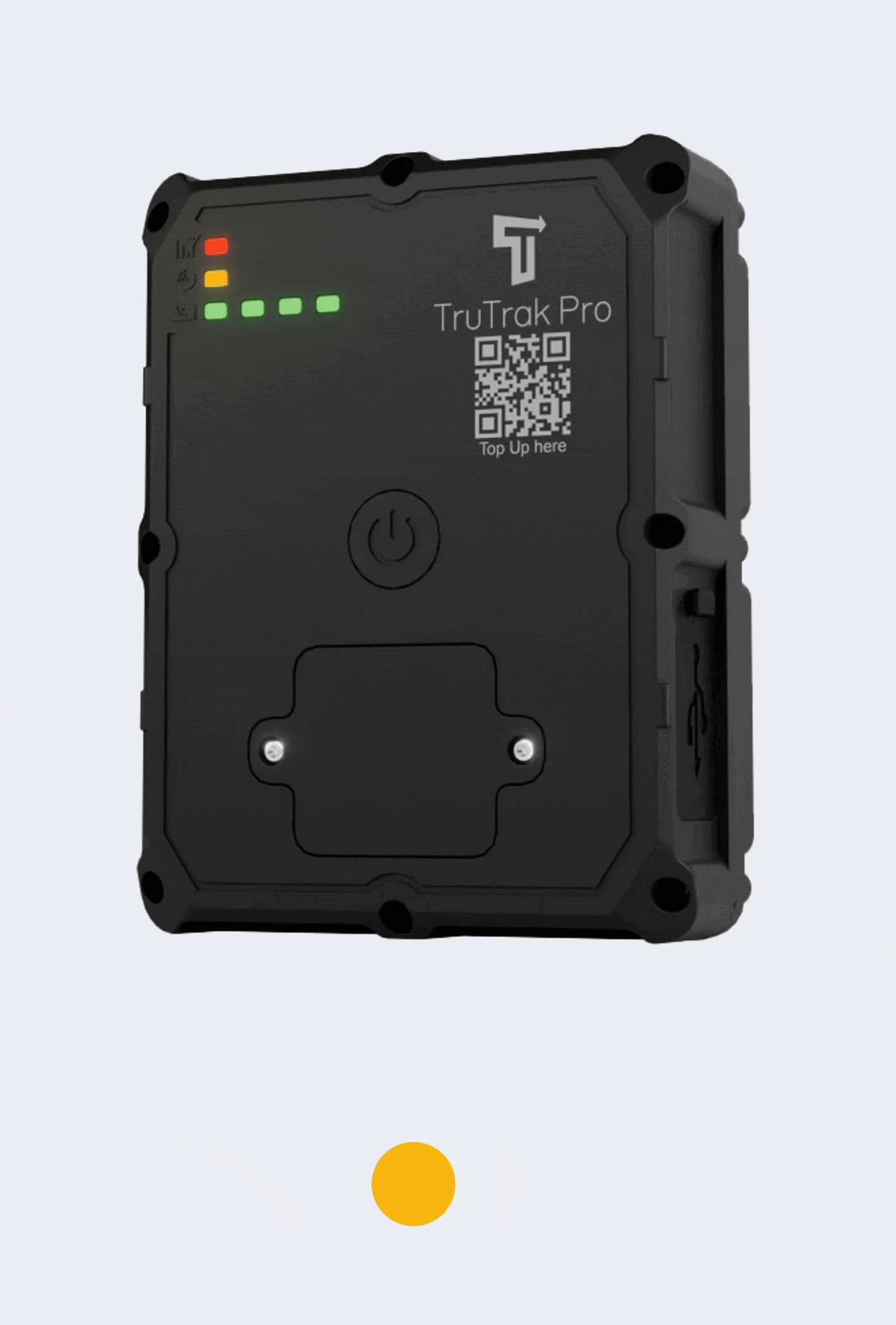

When the yellow LED is flashing rapidly, it indicates that the device is actively searching for a GPS signal to establish a connection.
GPS LED Signal
A solid yellow LED indicates that the device has successfully acquired a GPS signal. This means it is now accurately tracking its location and is ready to begin transmitting GPS data as needed.
Note:If you are having difficulties with the yellow light appearing, it could indicate that the GPS is in sleep mode. To resolve this, simply press the light button again to reactivate the GPS and display the status light.
GPSR LED Signal
A fast flashing red LED indicates that the device is initializing its GSM module. This is part of the startup process as it prepares to connect to the mobile network for data communication.
GPSR LED Signal
A slow flashing red LED indicates that the GSM signal is being received normally. This means the device has connected to the mobile network and is operating as expected.
GPSR LED Signal
A solid red LED indicates that GPRS is online, meaning the device has successfully connected to the mobile data network and is ready to transmit location and status information.
Note: If no GSM signal is received, it may be due to the SIM card not being inserted correctly or the device having entered low power consumption mode. To resolve this, simply press and hold the power button to reactivate the device and restore the connection.
FMT300 GPS Tracking Device
GPSR LED Signal
A fast flashing green LED indicates that the device is initializing the GSM network connection. This is part of the startup process as the device prepares to connect for data transmission.
GPSR LED Signal
A slow flashing green LED indicates that the GSM network is functioning normally and the device is receiving signals properly, ensuring stable connectivity for data transmission.
GPS LED Signal
A fast flashing blue LED indicates that the device is actively searching for a GPS signal. This is a normal part of the startup process as the device attempts to connect to satellites for accurate location tracking.
Power LED Signal
A fast flashing red power LED indicates that the device has a low or faulty battery. Charging the device as soon as possible is recommended to ensure proper operation.
Power LED Signal
A slow flashing red power LED indicates that external power is disconnected or turned off. The device may be running on internal battery power and should be checked to ensure uninterrupted operation.
Lights Not On or Not Flashing - What It Means:
If the green LED is not lit, it means the device has not found a network signal and cannot transmit data. If the blue LED is not lit, this suggests that the GPS has either gone into hibernation or is faulty and unable to establish a signal. If the red LED is not lit, this indicates an external power failure or an internal fault with the device, preventing it from powering on properly.
When all the lights on the device are solid and bright, it means the device has successfully established all necessary connections and is fully operational. The solid green LED indicates that the device is online and connected to the network. The solid blue LED shows that the device has located GPS and is actively tracking. Lastly, the solid red LED confirms that the device is powered on and functioning as expected. This state ensures the device is ready for reliable tracking and data transmission.
Note: If you are experiencing any problems with the lighting sequence of the device, please don't hesitate to contact our office for support. Our team is ready to assist you in resolving any issues you may encounter.
